Specifications
LOAD CAPACITIES
#4018-10: 20 tons/per wheel capacity
for standard freight cars.
Weight: 9,500 lbs.
#4018-22: 40 tons/per wheel capacity
for steel mill torpedo cars and other extra heavy railcars.
Weight: 10,500 lbs.

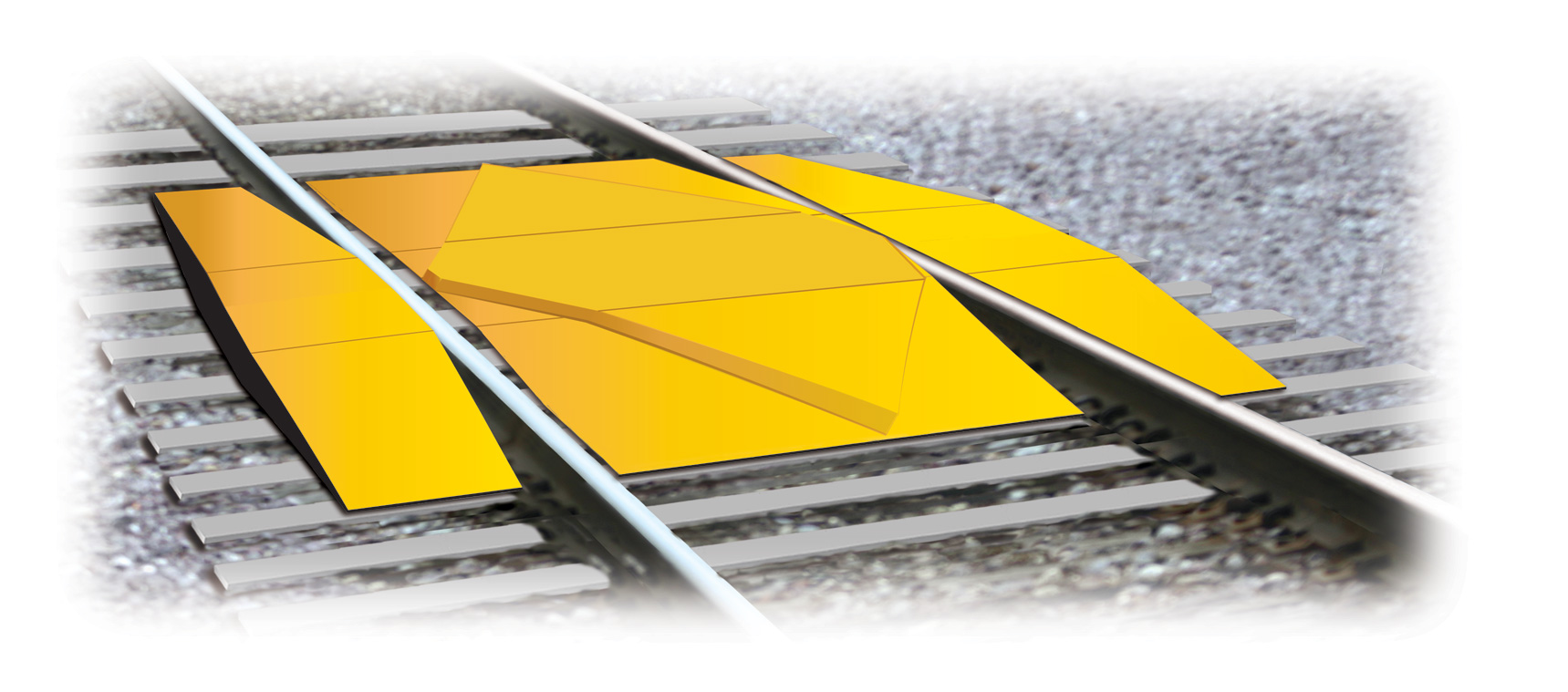

Full Diamond Rerailer
Retail pricing:
Contact Aldon to Order
Description

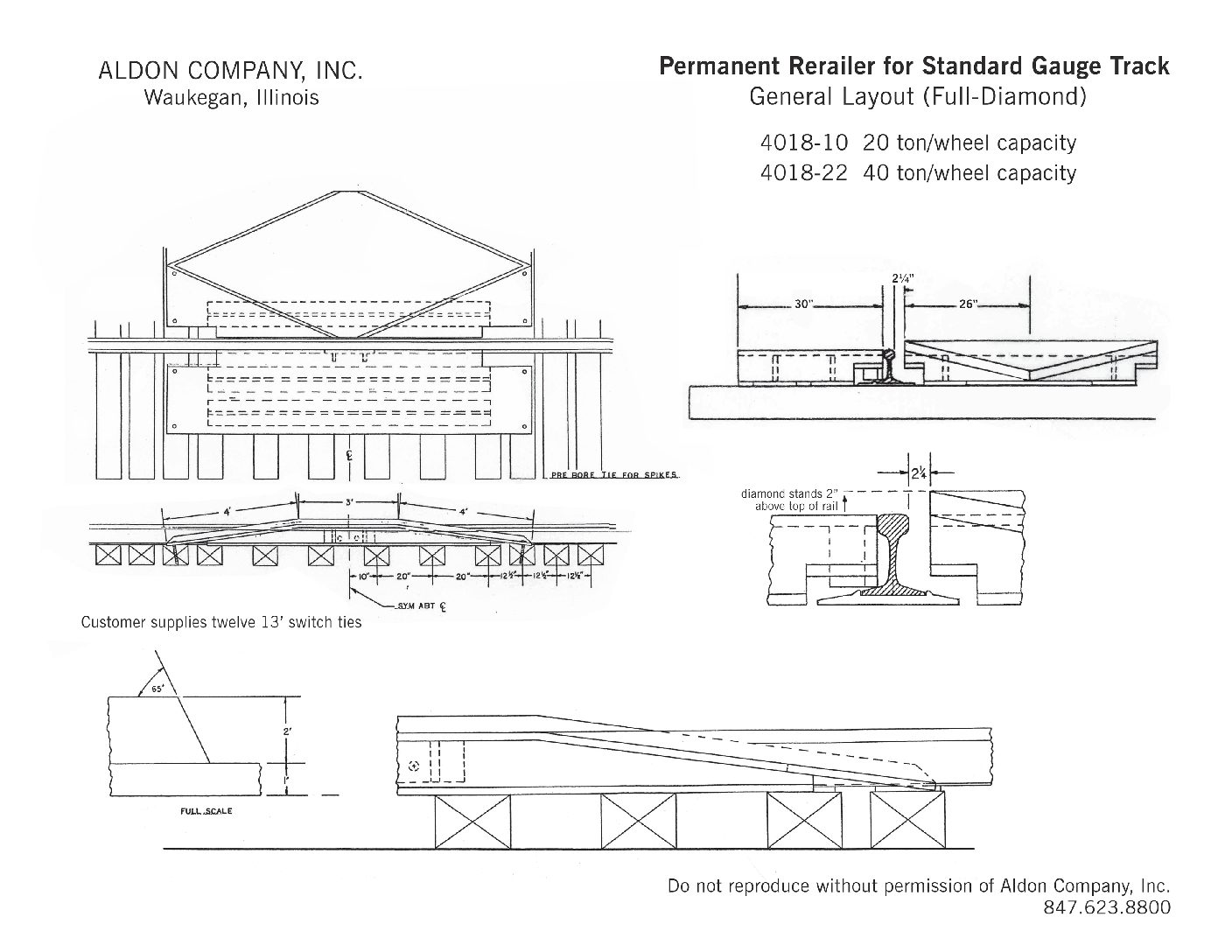

- Diamond-shaped rerailer automatically rerails car wheels in both directions.
- Diamond panel stands 2 in above top of rail to engage wheel flange.
- Customer supplies twelve 13 ft switch ties to support rerailer. Overall length 11 ft.
- A 30% down payment is required.
HALF/FULL DIAMOND RERAILERS ARE NOT PAINTED YELLOW. (All Diamond Rerailers are manufactured and shipped in raw steel.)
Your rerailer is made to order. Please complete the sizing form in the tab below and return to us by fax (847.623.6139) or email: e-rail@aldonco.com.
Product Resources
Our Sales Engineers Are Ready To Advise Customers Regarding Aldon® Products For Railyard Safety and Repair.
