Single Half Diamond Rerailer

Item #: HalfDiamond

Retail pricing:

Contact Aldon to Order

Description

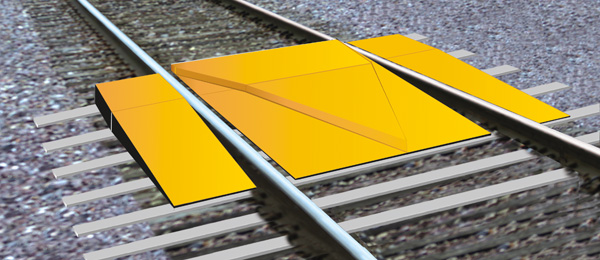

Single Half Diamond Rerailer

1-way rerailing for approaches to buildings, weigh scales, unloading pits.

  • Panel stands 2" above top of rail to engage wheel flange. Overall length: 5 ft. 6 in.
  • Customer supplies nine 13 ft. cross ties.
  • A 30% down payment is required.

HALF/FULL DIAMOND RERAILERS ARE NOT PAINTED YELLOW. (All Diamond Rerailers are manufactured and shipped in raw steel.)

LOAD CAPACITIES

#4018-11: 20 tons/per wheel capacity
for standard freight cars.
Weight: 5,500 lbs.

#4018-23: 40 tons/per wheel capacity
for steel mill torpedo cars and other extra heavy railcars.
Weight: 6,050 lbs.

Your rerailer is made-to-order. Please complete the Sizing Form below and send it to us by fax (847.623.6139)
or email: [email protected]

Specifications

LOAD CAPACITIES

#4018-11: 20 tons/per wheel capacity
for standard freight cars.
Weight: 5,500 lbs.

#4018-23: 40 tons/per wheel capacity
for steel mill torpedo cars and other extra heavy railcars.
Weight: 6,050 lbs.

Sizing Form

Sizing Form (PDF)

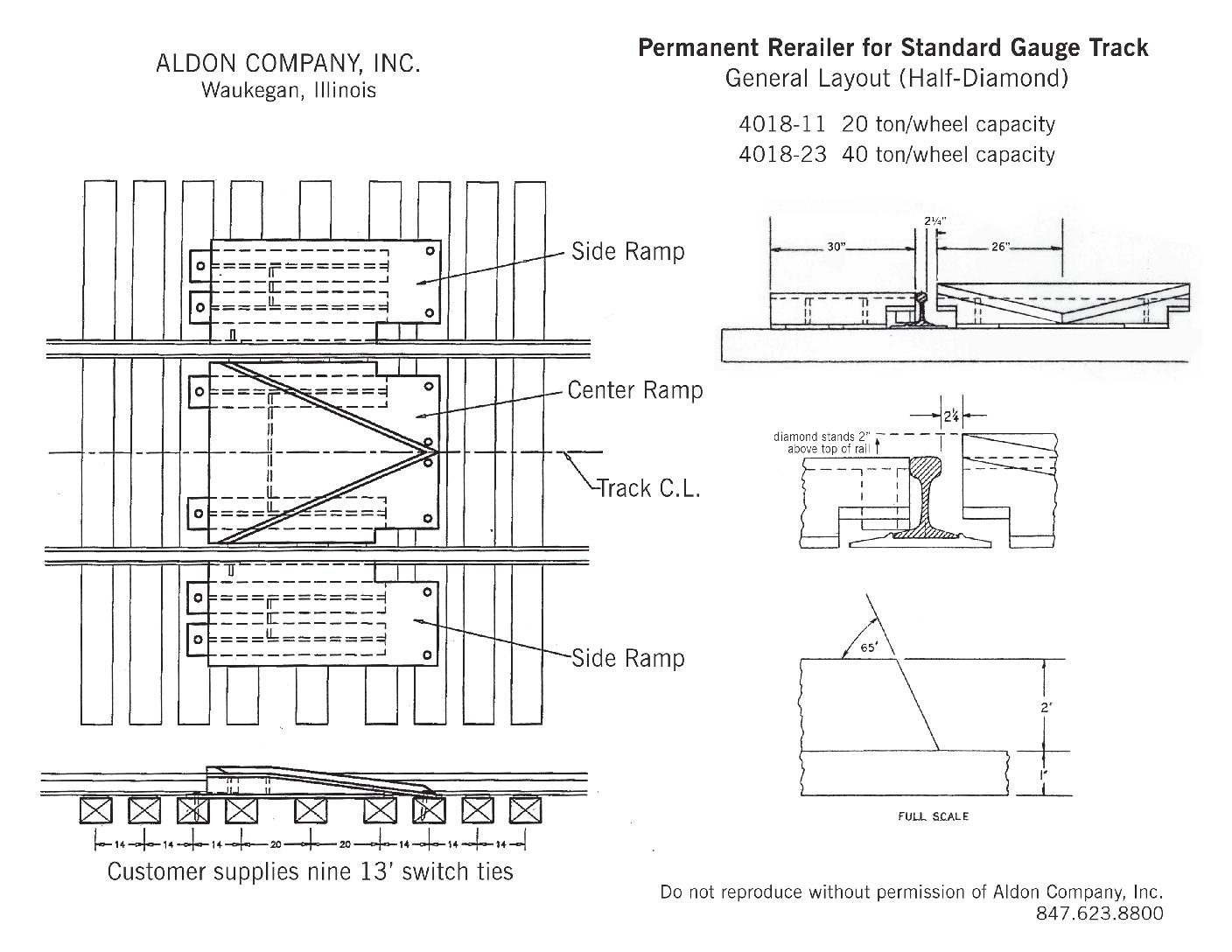

Layout

Layout (PDF)

Additional information

Shipping Weight N/A
Shipping Dimensions N/A
Per Wheel Capacity

20 Ton, 40 Ton
