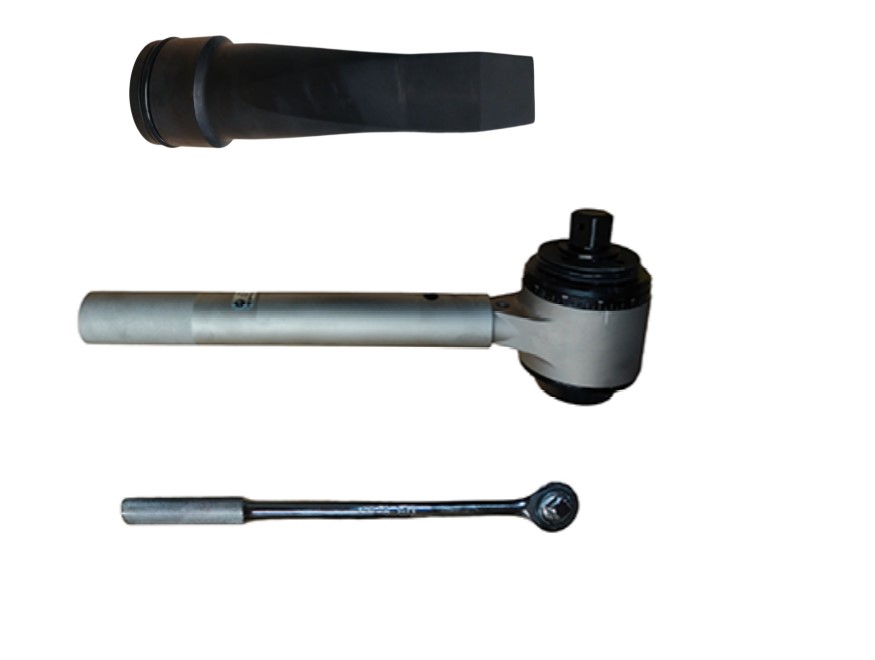

Gatemaster I - Manual Railcar Gate Opener

Manufactured by Aldon®

Item #: 4020-05

Retail pricing:

$4,153.50

Description

Our Gatemaster openers are compact, simple-to-use manual tools for hard-to-open railcar gates.

Through planetary gear reduction in the Gatemaster head, the worker's handle effort is multiplied 18-1/2 times — a considerable mechanical advantage. Maximum torque output of 3,200 lb.-ft. (enough to open almost all gates) can be achieved by only 173 lbs. of handle effort.

  • The same effort on a six-foot pry bar would only produce about 1,000 lb.-ft. of torque.
  • There is no loss of action when using the Gatemaster.
  • The output torque is sustained until the gate opens or the operator releases the torque.

Weight: 30 lbs.



Related Items:

AL-94  Square Drive Fitting, Item #: 4024-06 Click Here

Replacement Gatemaster 1" Square Drive Kit, Item #: 6147 Click Here

Specifications

Gatemaster II has an additional torquing unit which decreases the handle effort to just 35 lbs. to achieve a torque output of 3,200 ft.-lbs.



Additional information

Shipping Weight 38 lbs
Shipping Dimensions 17 × 13 × 6 in
