Additional information
| Shipping Weight | 10 lbs |
|---|---|
| Shipping Dimensions | 45 × 10 × 5 in |
#23-A Adjustable Level & Gauge
Manufactured by Aldon®
Retail pricing:
$390.00
Description
An accurate way to measure two inches of gauge variation to 0.0625" accuracy.

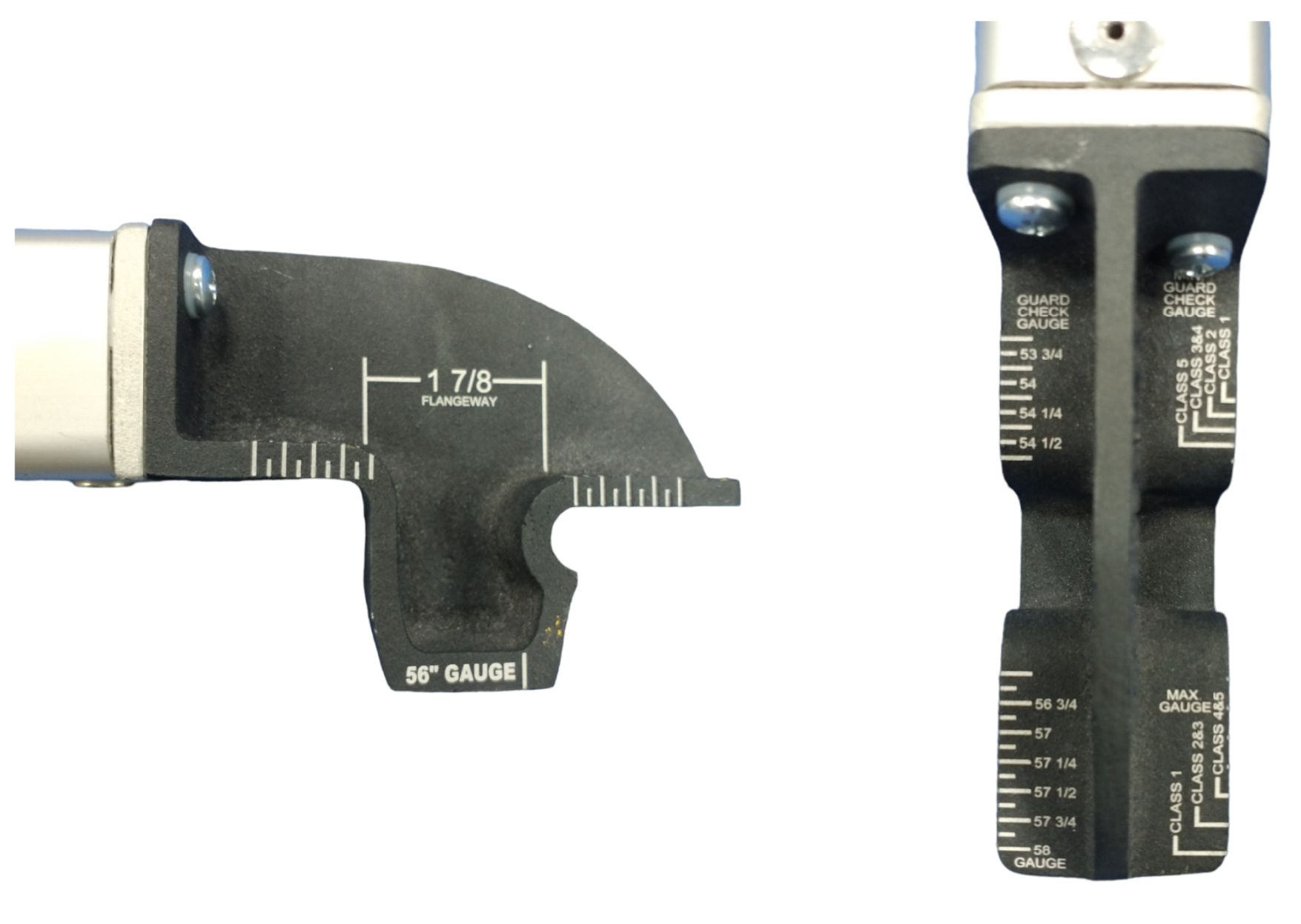

Designed to check track gauge, guard check, flangeway and track elevation.
- 56"- 58" Gauge Range.

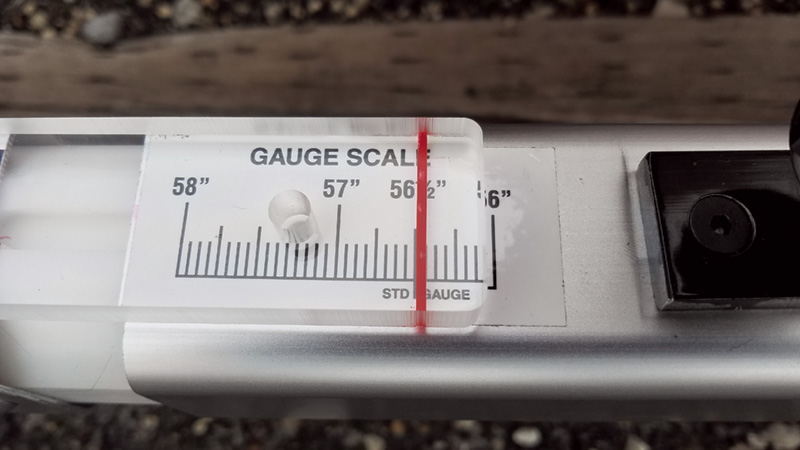

- Slide rule action and large type scale for easy reading.
- Gauge setting can be locked with a thumb screw.
- Also measures cross elevation from 1" to 7" with 0.125" accuracy.
- Insulated to prevent disruption to track circuits.
Weight: 7 lbs.
Replacement Parts

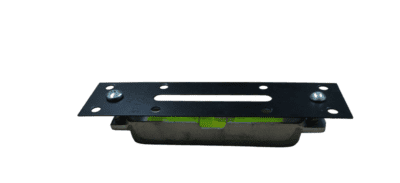

Top Plate Assembly for Aldon Levels. Item #: 6872 CLICK HERE
Product Resources
Our Sales Engineers Are Ready To Advise Customers Regarding Aldon® Products For Railyard Safety and Repair.
You may also like…
-
$160.85 Quick ViewUniversal Handle For Track Gauges & Levels
Manufactured by Aldon®
4022-28
$160.85
-
$1,280.00 Quick ViewRoadmaster Rolling Gauge Reader
Manufactured by Aldon®
4022-14
$1,280.00
-
$272.96 Quick View#2 Aluminum Level
Manufactured by Aldon®
4022-01
$272.96
-
$297.04 Quick View#23 Aluminum Level & Gauge Combination
Manufactured by Aldon®
4022-03
$297.04
-

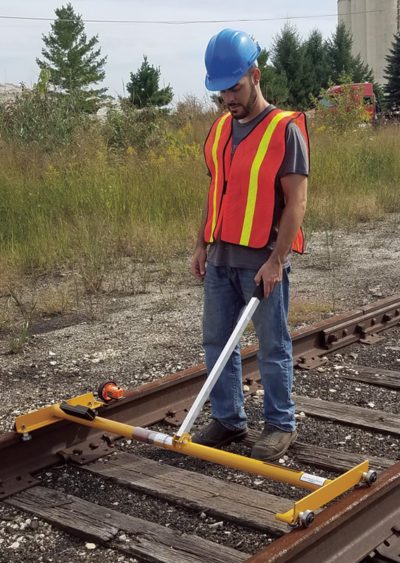

$944.09 Quick ViewEconomy Rolling Gauge Reader (AL-102)
