One-Way "Right Throw" Hinged Derail w/Manual Lift Sign Holder

Name: One-Way "Right Throw" Hinged Derail w/Manual Lift Sign Holder
SKU: 4014-02
Price: 1520.80 USD
Availability: InStock

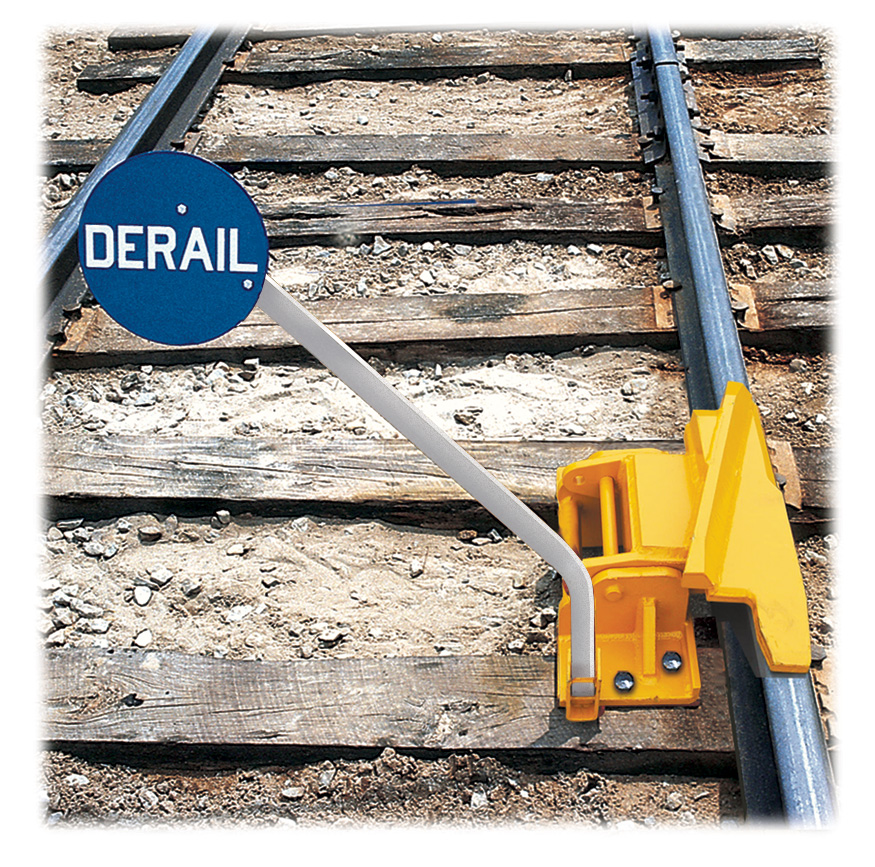

4014-02-4014-02-5R-Derail-With-Manual-Lift-Sign-Right-Size-5-silver-arm

Manufactured by Aldon^®

Item #: 4014-02

Retail pricing:

$1,520.80

Description

Derails are emergency stopping devices when needing to stop a Freight Car or Locomotive. They are designed to guide the wheels of a freight car or locomotive off the rails. OSHA requires that every industrial siding be equipped with a derail to deny locomotive entry before railcars are ready to be removed.

Hinged derails are lifted on and off the rail by hand or with our Derail Lifting Lever.
The blue derail sign is separately lifted and lowered by hand.
For more convenience, consider the Pop-up Sign Holder for either One-Way or Two-Way derails.

For use on wooden ties, and is designed for freight cars and locomotives (4 axles and 6 axles) operating at 10 m.p.h. or less.

CAUTION: Install derails on exposed rail tracks only. For rails, 90-141 lbs./yd. Derails are sized to fit a specific rail height, including the thickness of the tie plate. A blue derail sign and holder are included with the derail, along with six screw spikes for proper anchoring to ties—the height of the derail above the rail, 2-3/4".

Order Shims necessary for attaching Derails firmly to the track.

Product Resources

Our Sales Engineers Are Ready To Advise Customers Regarding Aldon^® Products For Railyard Safety and Repair.

Specifications

NOTE: Hinged derail is designed for use on tracks with wooden ties. Use screw spikes (supplied with Aldon Hinged Derails) to anchor derails to wooden ties properly. See #4014-13, Base Plate Accessory, if you have steel ties. Do not install derails on resin or concrete ties.

Weight 156 lbs. (derail, sign, and holder).

Derail Sizing Form

Your Hinged Derail is made to order to fit your rail. We cannot process your order without the information you provide on the derail sizing form. It is ideal, but not essential, to submit your form with your order with the “upload completed sizing form” by the blue “add-to-cart” button above.

The form is a “fillable” form (you may need to open the document in Adobe Acrobat Reader rather than in your browser for the fillable boxes to be active). Alternatively, print the form, fill it out, and then fax (847- 623-6139), scan and email ([email protected]), or mail it (3410 Sunset Ave, Waukegan, IL 60087).
